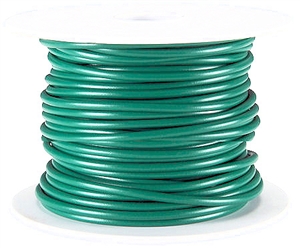

Grounding Earth Wire 4 AWG

Using a 4 AWG ground wire for your ham radio setup is a robust choice to ensure effective grounding, as it provides low resistance and good current-handling capability. Here's what you should consider:

Why Grounding is Important

Grounding in ham radio systems helps:

1. Protect Equipment: Discharges static electricity and diverts lightning strikes safely.
2. Reduce Noise: Minimizes interference and provides a cleaner signal.
3. Enhance Safety: Prevents shocks by directing stray currents to the ground.

Key Points for Using 4 AWG Ground Wire

1. Material:

   • Choose copper or tinned copper for its excellent conductivity.
   • Tinned copper resists corrosion better, especially in moist environments.

2. Length:

   • Keep the wire as short and straight as possible. Avoid sharp bends to reduce inductance and impedance.
   • A direct path to your grounding rod is crucial.

3. Ground Rod:

   • Use a copper-clad steel ground rod (typically 8 feet long) for effective grounding.
   • Drive the rod into moist soil for better conductivity.

4. Connections:

   • Secure connections with UL-listed clamps designed for 4 AWG wire.
   • Use anti-oxidant compounds to prevent corrosion at connection points.

5. Lightning Protection:

   • Install a lightning arrestor between your antenna feed line and ground wire.
   • Ensure the ground wire for the lightning arrestor is also 4 AWG for consistency.

6. Code Compliance:

   • Check local electrical codes or FCC guidelines to ensure your setup meets safety standards.

7. Ground Loop Avoidance:

   • Connect all ground wires (radio equipment, tower, and other devices) to a single ground point to avoid ground loops.
